Re: Project Lex


Thanks man. It's actually called Fine Texture Black. Kinda like the OEM looking black plastic stuff that has a very fine texture to it. I like it cuz it's just subtle, easy to keep clean, and just hides things better (welds, little casting flaws, things like that). No more polished crap for me, I want this to be easy to keep clean lol.

Re: Project Lex


Looks good! Who did the powder work??

Re: Project Lex


Twin Cities Powder Coating. I think it's Lino that they're in, just up 35W from us. I like the black. The other color I'm not that excited about, but it is what it is at this point. Would rather find a guy who just does it out of his garage to be honest lol. They weren't particularly fast, or particularly cheap.

Re: Project Lex


So nice and clean!

Re: Project Lex


Seems like none of them are. Time to start up jkodis again!

Re: Project Lex


^^ Haha, that PC'ing system is long gone. If I had like a little hobby shop in a commercial area, it'd be a fun little thing to have off to the side. But never again in my home garage!

Re: Project Lex

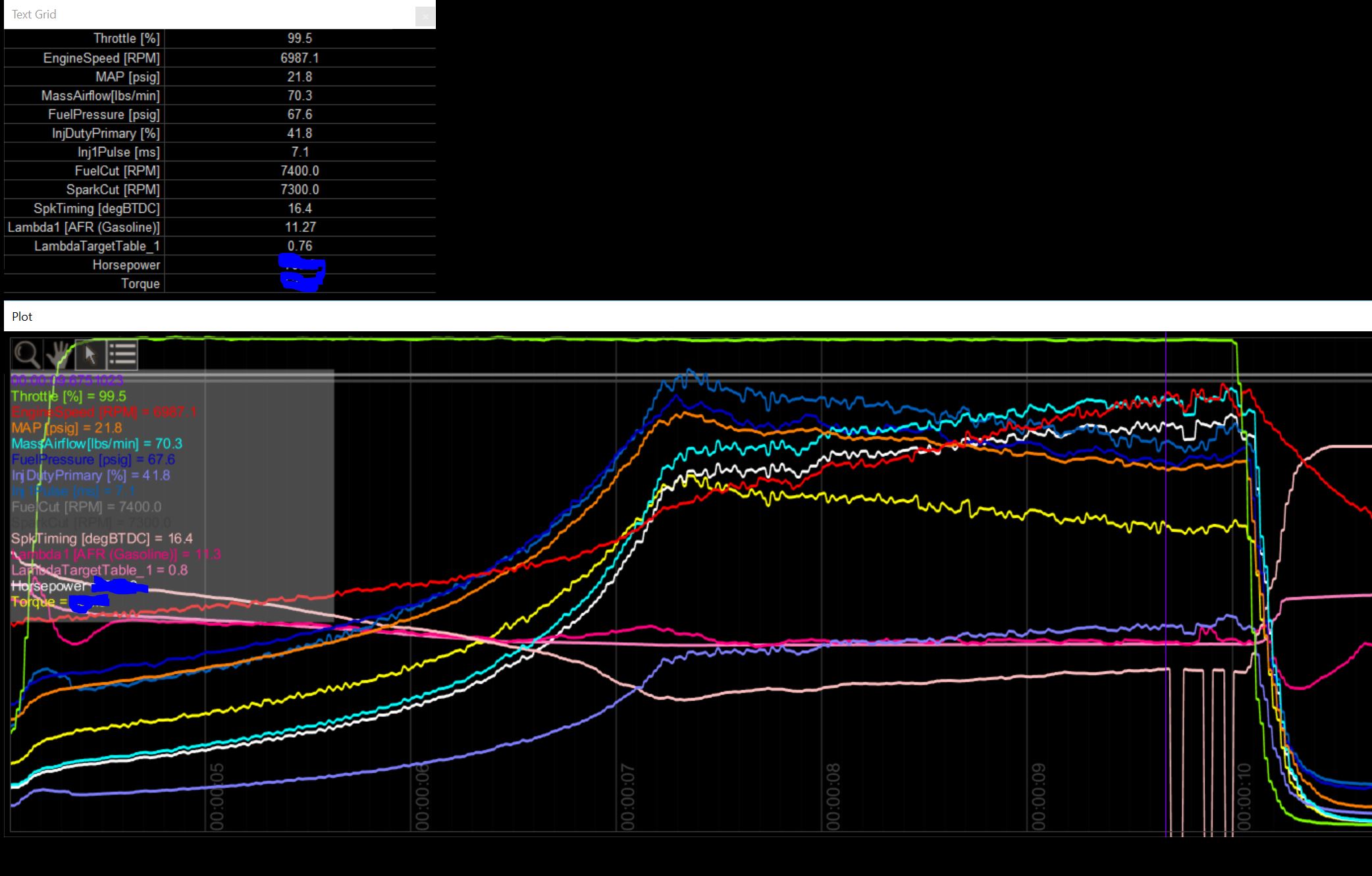

So we are starting to turn the boost up from the WG pressure (12psi) we were running before. Did a pull / log at lunch today and sent it in. I quick looked it over for myself. Looks like 24psi at about 4800rpm. Then boost gradually tapers down to 20psi as we reach a nice conservative redline of 7300rpm.

Car finally feels like it woke up too! I'm paying no attention to the HP / TQ curves on this graph, but it does look like we're starting to touch 70lb/min airflow out of this little 61mm (and still at lower boost levels!). Looks like he has the AFR pretty safe at 11.0 and timing is still pretty conservative (10*-11* most of the time in boost, but peaking at 15* at redline).

Anyhow, the fun part is finally underway!

http://mitsustyle.com/forums/attachm...1&d=1487880377

Re: Project Lex


You must have some real garden hoses to only be at 41 IDC!

Re: Project Lex


Yeah they are FIC 2150's. I'm actually getting some smaller ones. These will be up for sale. I'm going to switch to FID 1600's. Should be able to support 1000hp on e85 safely, and idle better being smaller. So the FIC's will be up for sale in probably a month.

Re: Project Lex


Pretty rough idle and low-speed drivability right now?

Re: Project Lex


It's actually pretty good on e85. But on pump, yes idle was not all that great. I'll probably make money in the end off this switch, so it was a no brainer. They are sized better for me, so will idle and drive better (especially on pump), they still leave plenty of head room, and also will be less prone to e85 corrosion than the 2000 sized ones are.

Re: Project Lex


Cool tuning logs! Wish I had a log like that from when I had my tune. I received the tune file but it doesnt show results like that.

Re: Project Lex


Little Update. Got the updated tune in. He turned up the duty cycle on the boost controller and didn't make any difference at all. So I started to wonder what spring (or springs since these can have up to 3 springs installed) did I actually have in my WG. Looked in my tool box and found the 7psi spring that originally came in it, and I found the 5psi spring that I bought along with a 10psi spring, that I thought I installed together. Also found an 11psi spring that I didn't even know I had.

SO I pulled the WG off and cracked it open. Only one spring was installed (assume it's the 10psi spring). Damn, this whole time I've been thinking I had both the 10 and 5 in there so I had 15psi of spring in there. Dumb mistake :(

What I find very interesting is how it tapers down to 20psi, and they always say the general rule of thumb is you can only go about twice your WG spring. So that pretty much seems right on the money in this case.

So I'm going to hit up Vlad to see what he prefers I put in there. With the springs I have, I can combine them to make 15psi, 16psi, 18psi, or 21psi. I'd like to just throw the 21psi combo in there because why not I don't plan to boost lower than that. But I think Vlad wants less because he'd like to have a safe pump gas tune which would be closer to the 16-18psi range.

So Andrew you had asked why the boost is tapering the other day, this might be the smoking gun!

Re: Project Lex


You could use a vacuum puller to determine exactly what you had, but makes sense on the 10psi spring. Something like 16lb spring makes sense if you want run 30 or less on e85, but I get the desire to run a higher spring if you're only running ethanol going forward.

Re: Project Lex


I have no idea how to do the vacuum puller thing. But I went back in this thread to way back when I bought some of these parts. You can clearly see on the WG package that this came with a 7psi spring. Then you can see photos of the new springs I bought (10psi and 5psi). So I think it's pretty clear to me now.

I'd like to be able to turn it up to 35psi if possible. So that has me leaning towards the 18psi combo since the "multiply by two" rule of thumb keeps me in that range. I'm guessing Vlad will want the 16psi combo for safer pump tune. But truth is this car will never see pump. In the extremely extremely extremely extremely rare case I have to fill it up with pump, that'd probably be some situation where it's some sort of long road trip and there's not e85 around, and so I have no choice. And in that case, I'll just stay out of boost.

That's my thoughts for now at least

Re: Project Lex


Just run the highest spring possible in that case if you're staying out of boost on pump. Why even get close to the 2x rule imho, easier on your WG if the spring is higher.

Re: Project Lex


I'll have a dial that I can turn boost up and down with. So I suppose it'll work fine if I have it set to lowest setting all the time and that's around 18 psi. All the way up is like 35psi or so. Seems like a nice range, and I'll probably just cruise around with it on the low setting all the time because plenty of fun to be had and fish to catch at 18psi, and easier on the car in general.

Re: Project Lex


Got a couple pulls in today. So my latest tune we're now up to 25psi. Haven't done a pull with it yet but the car is feeling good. Too good cuz 3rd gear is about useless so I'm having to do my pulls in 4th gear (No Jail Preeze).

Also, got my new injectors today. FID 1600 high-z. Going to wait a little while to install them as I want to keep moving forward with the progress we're making on the logs/tune for now.

Re: Project Lex


Was nice to see you! I'm excited for the results.

Re: Project Lex


Yeah same. Thanks again!!

PS - I ran into Chris in the parking lot on the way out. Took me about 3 double takes before I realized it was him!!

Re: Project Lex


What are the tuning logs showing for HP at 25psi? Very cool updates!

Re: Project Lex


I haven't actually done a pull / log at 25psi yet. But at 23psi (my most recent log) it showed like 65lb/min flow, which ricer math would say is 650hp. Having not driven anything remotely fast in a long time, it's really starting to feel like a handful!

Re: Project Lex


4th gear pulls have to be a bit hairy! Thats well into the triple digits id assume?

Re: Project Lex


I'm sure too. My speedo no worky, so as far as I know I was going the speed limit :D

Re: Project Lex


What happened to the speedo? Get a GPS app on your phone for speed and set that on the dash haha, thats what i did when mine wasnt working.

Re: Project Lex


Ever since the CD009 swap. OEM my car had the speed sensor in the trans. The CD009 do not have a speed sensor, those cars get that signal from somewhere else. So that's one of the issues you have to deal with when doing this trans swap.

Originally I did buy an Autometer GPS device that I plugged into my car, and it made my speedo work again (with an ever so slight lag). However I removed it when I took all this stuff apart and I didn't reinstall it.

I will be wiring in my ABS sensors into AEM. Those are required for the traction control feature. I will also be able to use that signal for speedo control as well. So that's the plan moving forward. Otherwise temporarily for the time being no speedo is fine, I just cruise with traffic.

Re: Project Lex


4th gear pulls!! hot damn!

Re: Project Lex

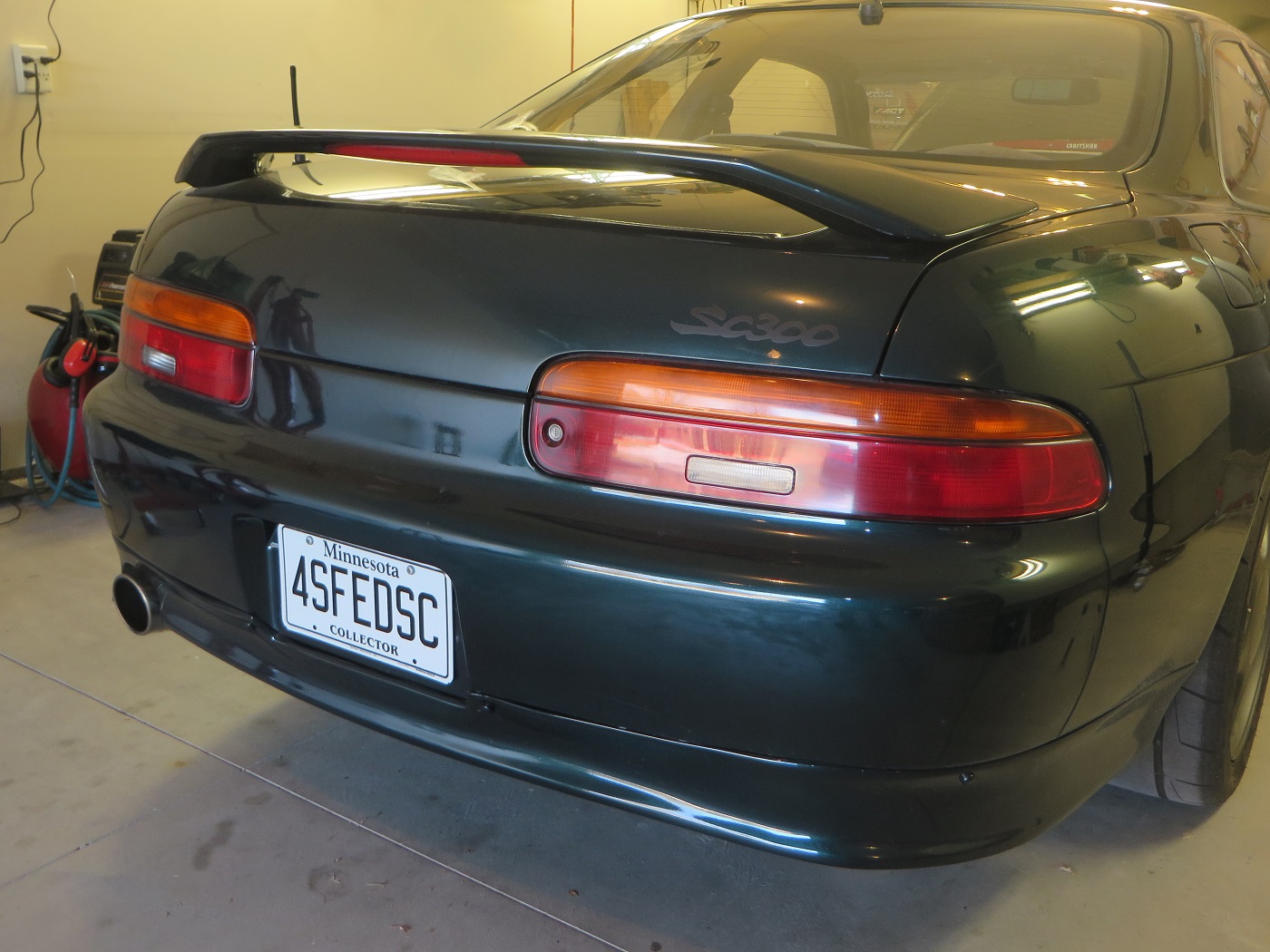

DMV sent me a present today :) Custom Collector plates. No more annual renewal, no more front plate!

http://mitsustyle.com/forums/attachm...1&d=1489542635

Re: Project Lex


Nice

Re: Project Lex


Looks good, I love the color of the car.

Re: Project Lex


^ I have to say, the color has actually grown on me a ton lately. So many neutral colored cars (White, Black, Grey's), I'm really glad it has color. And I've started to notice I love this dark metallic green now. I wasn't a huge fan originally. I really love the Supra's in the same color. Probably my favorite color Supra honestly right now.

Re: Project Lex


I love dark metallic green in general, i think it really suits this car.

Re: Project Lex


Well just some small updates. Some of you saw in the shoutbox, but I ran into a couple issues.

Wednesday I went to take the car around the block, and it felt ridiculously slow and I couldn't rev over 4500rpm. Vlad remoted in and told me the Wideband sensor died and the ECU went into a fail-safe limp mode because of it. Ran to O'Reilly and grabbed a new Bosch 17018 sensor (I NEED TO SAVE THIS P/N SOMEWHERE!!!) as that's a readily available LSU 4.2 sensor with the AEM style connector. Threw that in and bam limp mode fixed, no more 4500rpm limit!

However car was still super slow feeling. Turns out one of my IC pipes blew off. I guess I'm so used to DSM's with MAS sensors where you blow the pipe and the car runs like dog shit and you know right away. This car not having a MAS, it still started, idled, and drove great, so took me awhile to realize it lol. I removed the pipe and made sure there was no rocks or road debris (thanks for that idea Pat). Got it all back together and she's running like a top again!

I went to get it aligned on Thursday. They found that my front control arm bushings were shot so they weren't even going to attempt working on the front. They did do the rears though to the specs I asked for. Overall it went good I guess because we identified an issue. So I've ordered a pair of new Supra front lower control arms with bushings, and also some new Moog upper control arms. So I'll put those in over the next couple weeks and hopefully the front will be good to go for another 100k miles. I'll bring it back and get the alignment redone at that point.

Today Kerry and I took it to the Auto Show and did a couple pulls. The new tune has us getting all the way up to 27psi by around 5200rpm, but gradually tapering to 22psi by redline. Holds better than it used to but still interesting how it tapers. I was sitting here staring at the log. I realized that AEM is showing that I'm flowing 70lb/min by 6500rpm and basically holding that until redline. This comp wheel is rated at 72lb/min. So being that I'm seeing 70lb/min, I'm wondering if I might just actually be about maxed out on this setup. My brain is so used to DSM stuff where I was pushing 35psi on a similar turbo to hit these kinda flow values, with 2 more cylinders now maybe I'm hitting those same amounts at less boost and this turbo will never hold 30psi to redline?

Anyway, car is feeling excellent! 3rd gear holds from a roll if the tires have had a chance to warm up. Here's a screen shot of my 3rd gear pull log.

http://mitsustyle.com/forums/attachm...1&d=1489805022

Re: Project Lex


Y U mask hp/tq #?
If your airflow maxed at the same time boost started dropping I'd agree. But your boost is dropping well before your airflow peaks. Doesn't hurt to step up the WG spring again, well might hurt to install haha.

That being said, you might hold boost longer with a stiffer spring, but if you're maxing out the turbo, I think you'll never be able to hold the 27psi+ to redline. Mo displacement mo problems!

Re: Project Lex


Because the are BS numbers. If u wanna know what it said for HP, just take the airflow X 10. That's all it's doing. So I scribbled it out so some 17 y/o newb doesn't mistake it as real.

Re: Project Lex


Since the car has been running great, we went ahead and made reservation at DB to rent their lesser used DynoJet on 4/10 @ 10am for a couple hours. DB will run the dyno/car, and Vlad will be remoting into the car / laptop and doing the tuning remotely. Vlad did say it's not fully necessary to dyno as the street tune is already very much on point. He tuned Kerry's Supra here street only just like I've been doing, and he has yet to get on a dyno, just ran with the street tune and car ran great all last year, and ran mid-10's at the track last year on his first visit to a track ever. But well I want some numbers, lol!! And this will give us time to make any final tweaks on the dyno and see how the car measurably responds, and hopefully just maximize the setup as much as we can. Pretty pumped for that day to come!!

I do have a small tick list to get through before that day though. I'm going to plumb the BCS slightly different to hopefully help with the boost taper. Also try to get some of my boost leaks fixed. Also will be swapping in the new 1600cc injectors as well. And lastly will be installing a new catch can setup. So not a bad little list, should easily be able to get those done over the next 3 weeks. Also will be doing a few more street pulls before then, so car really should be damn near dialed in by then.

Excited and Anxious for 2017!!!


SIDE NOTE, Andrew you were asking about me scribbling out the HP. So I talked to Vlad a little about that. He actually said the displayed lb/min actually shouldn't be taken at face value. He said that calc is based off of injector data actually. With companies like ID, they provide so much data with their injectors that the value ends up being incredibly accurate and the HP can be directly calculated based off that. However with any other injector company (FIC, FID, etc), while they provide the data needed to tune the care in general, they don't provide the extensive additional details that ID does, so he can't say for sure if the number is as accurate until we actually get on a dyno and compare. So that was interesting. The premium price of ID's in part comes from all of that extra data they have derived and include with their injectors. So while my numbers are decently accurate, we don't really know until we actually get on the dyno.

Re: Project Lex


Well since the air flow isnt actual air flow I would be doing a boost leak to see if thats why the turbo is dropping boost. What are you using for a boost contoler for boost? Maybe a waste gate actuator or back pressure would be a good investment. There are some other things you could don't force the turbo to spinn faster to see if its maxed out or not, I'm sure your tuner know how to do that.

Re: Project Lex


Thanks for the feedback. Right now boost control consists of a single 40mm Turbosmart WG with 18psi spring pressure. Then I have a 3-port MAC valve wired to AEM, and connected to the WG like in the diagram on the left in this link:

http://aemelectronics.com/files/inst...noid%20Kit.pdf


I'm pretty sure that I'm reaching the limits of this turbo, so yes I completely agree that any boost leaks are not great when you start approaching the limits of the turbo itself. Over-speeding it probably puts me off the maps efficiency islands, and mechanically probably isn't very good for the bearings and what-not. And I know I have some boost leaks.

I think I can get the piping leak fixed easily. I think there's a pinhole in the BOV flange weld. Momin has been talking about helping me redo the entire piping on that side anyway because the current piping on that side in general is a bit janky anyway, so that will take care of that one. Then there are two leaks at the two small vacuum fittings on the bottom of the intake manifold, which is another very annoying story that I won't get into. I can try and address those next, but they are not easy to access being on the bottom of the intake. If it ends up requiring me to remove my intake, then meh I dunno it might not happen before dyno day. The last leak is at the TB shaft. I guess it's common with some cheaper billet TB's. No idea what brand or anything this is as it was given to me, but I assume it probably falls into the 'cheaper' category. Unless there is a really easy fix, really easy seal or something, that's not something I really want to dig into at the moment, or in general spend much time and money on. Reason being is after this season is over, I'm getting rid of it as I will be converting to a DBW setup. So not worth it to me to spend tons of money or time fixing this one, or buying another, because after this year it's gone!

Re: Project Lex


Congrats dude, very happy for you.

Re: Project Lex


Gotta love unplanned expenses. New OEM Supra front lower control arms. And new Moog front upper control arms. Should help it ride better and let me get the front aligned better now.

http://mitsustyle.com/forums/attachm...1&d=1490467482
